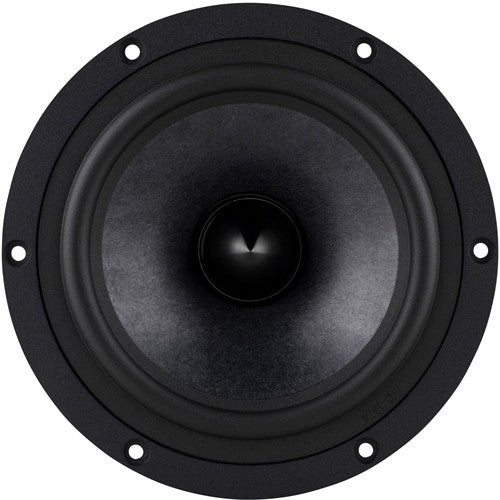

Altavoz 7 pulgadas graves hifi RPS108P-7"

Referencia RPS108P-7"

Condición : Nuevo producto

Disponibilidad: Agotado Temporalmente








Product Shipping Weight (lbs.)	4.65
Speaker Type	Woofer
Nominal Diameter	7"
Power Handling (RMS)	60 watts
Power Handling (max)	90 watts
Continuous Program Power	--
Impedance	8 ohms
Sensitivity	89.8 dB @ 2.83V/1m
Frequency Response	45 - 8 000 Hz
Voice Coil Diameter	38.5 mm
Magnet Weight	--
DC Resistance (Re)	6.3 ohms
Voice Coil Inductance (Le)	0.84 mH @ 1 kHz
Resonant Frequency (Fs)	45.8 Hz
Mechanical Q (Qms)	1.49
Electromagnetic Q (Qes)	0.44
Total Q (Qts)	0.34
Diaphragm Mass Inc. Airload (Mms)	12.4g
Moving Mass Of Diaphragm (Mmd)	--
Mechanical Compliance of Suspension (Cms)	0.98 mm/N
Surface Area Of Cone (Sd)	126.7 cm²
Volume of Displacement (Vd)	76.0 cm³
BL Product (BL)	7.16 Tm
Compliance Equivalent Volume (Vas)	22 liters
Maximum Linear Excursion (Xmax)	6 mm
Drivers Mechanical Losses (Rms)	--
Cone / Diaphragm Material	Paper / Kevlar Cone
Entry / Exit Diameter	--
Surround Material	Rubber
Voice Coil Wire Material	--
Voice Coil Former	--
Basket/Frame Material	Cast Aluminum
Magnet Material	Ferrite
Overall Outside Diameter	180.5 mm
Overall Depth	81 mm
Baffle Cutout Diameter	146 mm
# Mounting Holes	6
